Diesel Engine Deep Well Screw Air Compressor 525CFM 200psi For Water Drilling Machine

Name: Diesel Engine Deep Well Screw Air Compressor 525CFM 200psi For Water Drilling Machine
Brand: China
Price: 15000 USD

Buy cheap Diesel Engine Deep Well Screw Air Compressor 525CFM 200psi For Water Drilling Machine product

Brand Name : China

Model Number : KSZJ-15/14.5

Certification : CE

Place of Origin : China

MOQ : 1

Price : $15000-40000/pc

Payment Terms : L/C, D/A, D/P, T/T, paypal

Supply Ability : 500 sets per month

Delivery Time : 7days after received the payment

Packaging Details : as customer requirements

Condition : New

Capacity : 500 CFM

Working pressure : 210 PSI

Warranty : 18 months

Configuration : portable & stationary

Lubrication style : Lubricated,Oil-less

Power source : Diesel

Application : Pneumatic machine,Machinery Industry,Instruments,Mine

Voltage : Diesel Engine Driven

Cooling method : Air&Water Cooling

Contact Now

KSZJ-15/14.5 Diesel Engine 525CFM 200psi Deep Well Air Compressor For Water Drilling Machine

High reliability: compressor fewer parts, no wearing parts, so it is reliable operation, long life, overhaul interval of up to 4 to 80,000 hours;

Convenient operation and maintenance: high degree of automation, the operator does not have to go through a long period of professional training, enabling unattended operation;

 Power balance is good: there is no unbalanced force of inertia, smooth high-speed operation can be achieved without basic operation, especially suitable for portable compressors, small size, light weight, small footprint;

 Adaptable: a mandatory gas characteristics, the exhaust volume flow is almost free from pressure, in a wide speed range can maintain high efficiency.

Model No.	KSZJ-15/14.5
Capacity	18m³/min(635cfm)
Working pressure	17bar(247psi)
The head model no.	SKY170L-16
Air compressor oil capacity	48L
Compression Stage:	Double
Noise level db (a)	80±3
Outlet connection size*Qty	G21,G¾1
Engine	YUCHAI
Engine Model No:	YC6A180Z-T21
Cylinder bore stroke number of cylinders	1141356
Delivery Capacity	8.3L
Rated RPM	1800r/min
Unload RPM	1400r/min
Rated Power	194KW(260HP)
Diesel engine oil Capacity	21.9L
Fuel Tank Capacity	380 L
Electrical System Voltage	24V
Wheel size * Qtys	7.5-16*4
Weight(kg)	2500
Dimension (LWH mm)	3000×1520×1800

Contact

Product Tags:

Deep Well Screw Air Compressor

525CFM Screw Air Compressor

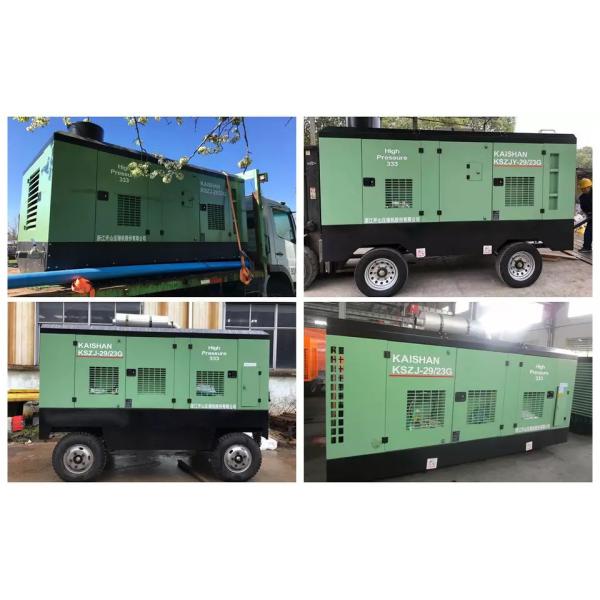

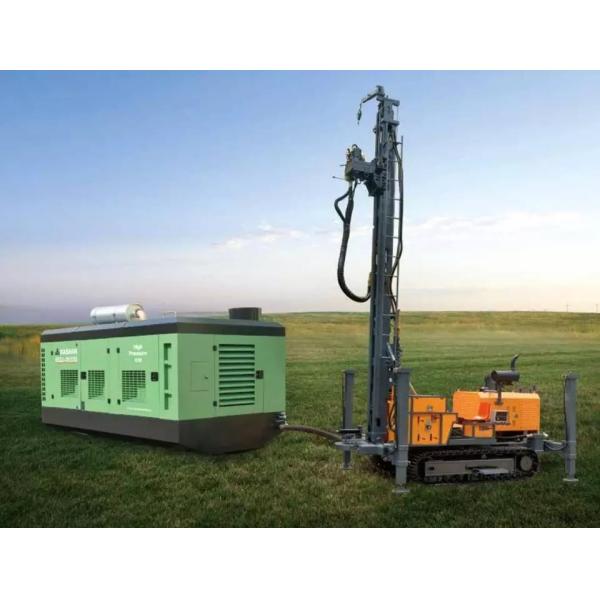

Diesel Engine Deep Well Screw Air Compressor 525CFM 200psi For Water Drilling Machine Images
